Hotels 200L Vertical Type Carbon Steel Color White Pressure Tank

100.0 Pieces
MOQ
Hotels 200L Vertical Type Carbon Steel Color White Pressure Tank
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel
Dimension(L*W*H): 600 mm x 600 mm x 1130 mm
Capacity: 200L
Year: 2020
Weight: 40.5KG
Volume (m³): 0.407
Design Pressure(MPa): 25
Max Working Pressure(MPa): 2 MPa
Working Temperature(℃): -10 - 100 ℃
Warranty: 2 years
Key Selling Points: Energy saving
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Energy & Mining
Showroom Location: Viet Nam, India, Thailand
Working Pressure: 8Bar 10Bar
Tank Colour: Blue Red Green Almond
Connection: 1 ''
Membrane: Sepecial Solar membrane( made in Italy)
Working Temperature: -20C / +130C
Per-Charge Pressure: 2 Bar
After-sales Service Provided: Video technical support, Online support
After Warranty Service: Online support
Local Service Location: Viet Nam, India, Thailand, South Korea
基本情報
お支払配送条件
Packaging Details: Export Carton with Bubble bag /OPP bag, on carton can make according customer logo also, have each tank size and mold on the carton.
Supply Ability: 10000 Piece/Pieces per Month
製品の説明
Product Description

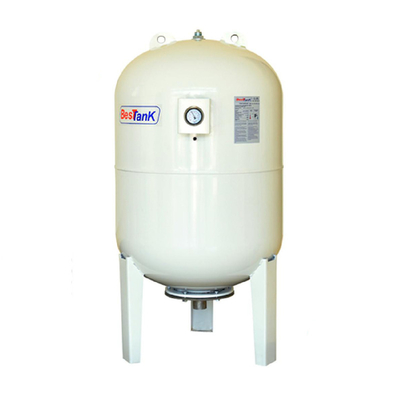

200L PRESSURE & EXPANSION VERTICAL
SOLAR SERIES TANKS ( CHANGEABLE MEMBRANE )

8BAR / 10BAR
Model: BHT-200V-S
Dimension:
Diameter :600mm
Height : 1120mm
Connection : 1inch

BESTANK PRESSURE & EXPANSION TANK SPECIFICATIONS
Tank Metal Body
*Interchangable membrane with screw connection flange cover at the bottom of the tank
*Flange cover and water connector made of stainless steel material
*Resistant up to 8bar - 10bar - 16bar - 25bar
*Outer surface with epoxy powder paint
*All tanks PED-CE Certified
Option: Flanges available in carbon steel upon request

Membranes
Made in Italy EPDM / BUTYL SOLAR membrane -2OC-130C
*High quality EPDM / BUTYL membranes , hygienic certifications approved by European Union and USA Institutions
*DIN4807-3, NSF-61, WRAS, BS-6920 certificates available
Option: Butly membranes available upon request
Colour;
Orginal Colour : Blue-RAL5015 ; Red-RAL3020 ; White-RAL1013 ; Green-RAL601620

Product Paramenters
Company Profile
BESTANK International is a global key-producer ( jointventure Turkey and China ) of various type of pre-pressurized
surge&expansion&pressure tanks, Our main product ranges are ;
* BESTANK Potable Water Pressure Tanks from 2lt up to 10.000lt;
* BESTANK Heating Series Expansion Tanks from 2lt up to 10.000lt
* BESTANK Solar Series Expansion Tanks from 2lt up to 2000lt
* EDS GLOBAL 5 Years Warranty Fix Diaphragm Tanks from 2lt up to 500lt ;
* Stainless Steel Flexible Hoses from 1inch to 2inch / DN19 to DN50
* EPDM/Butyl Bladders For Booster/Hydrophore&Expansion Tanks
* Reverse Osmosis Storage Tanks
* Other Accessories Such As Pressure Switches, Float Level Switches, Pressure Gauges, Brass 5 Way Connectors with/without
CheckValves etc...
Website : www.bestank-international.com
